Zinc-Plated

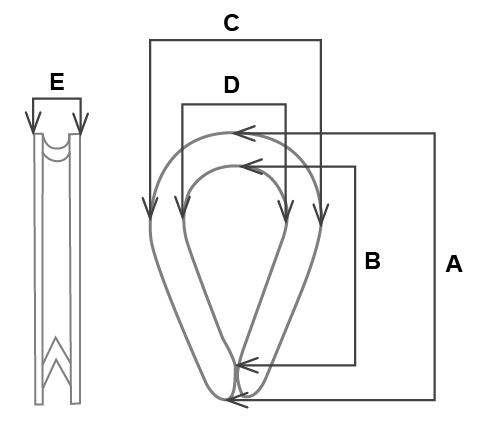

| SIZE | STOCK NUMBER | FINISH | A | B | C | D | E | WEIGHT/100 PCS. |
|---|---|---|---|---|---|---|---|---|
| 1/8″ | TSD125 | Zinc Plated | 1.94 | 1.31 | 1.06 | 0.69 | 0.16 | 2.0 |
| 3/16″ | TSD187 | Zinc Plated | 1.94 | 1.31 | 1.06 | 0.69 | 0.22 | 2.7 |
| 1/4″ | TSD250 | Zinc Plated | 1.94 | 1.31 | 1.06 | 0.69 | 0.28 | 3.0 |
| 5/16″ | TSD312 | Zinc Plated | 2.13 | 1.50 | 1.25 | 0.81 | 0.34 | 3.6 |
| 3/8″ | TSD375 | Zinc Plated | 2.38 | 1.63 | 1.47 | 0.94 | 0.41 | 6.3 |
| 1/2″ | TSD500 | Zinc Plated | 2.75 | 1.88 | 1.75 | 1.13 | 0.53 | 13.0 |
| 5/8″ | TSD625 | Zinc Plated | 3.50 | 2.25 | 2.38 | 1.38 | 0.66 | 36.0 |
| 3/4″ | TSD750 | Zinc Plated | 3.75 | 2.50 | 2.69 | 1.63 | 0.78 | 50.0 |
| 7/8″ | TSD875 | Zinc Plated | 5.69 | 3.50 | 3.19 | 1.88 | 0.94 | 85.0 |
| 1″ | TSD100 | Zinc Plated | 5.69 | 4.25 | 3.75 | 2.50 | 1.06 | 104.0 |
| 1 1/8”-1 1/4” | TSD1125-1250 | Zinc Plated | 5.69 | 3.50 | 3.19 | 1.88 | 0.94 | 175 |
Note: Standard Duty – According to Federal Specification FF-276b, Type 11
