Specifications Grade 100

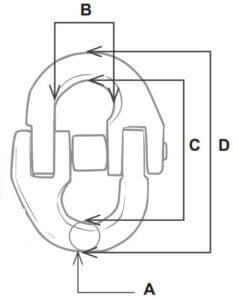

| STOCK NUMBER | SIZE | DIMENSIONS | Working load limit | |||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| XCL281 | 9/32″ | 0.30” | 0.55” | 1.75” | 2.36” | 4,300 lbs. |
| XCL312 | 5/16” | 0.40” | 0.84” | 2.42” | 3.25” | 5,700 lbs. |
| XCL375 | 3/8″ | 0.50” | 1.02” | 2.70” | 3.71” | 8,800 lbs. |
| XCL500 | 1/2” | 0.64” | 1.23” | 3.50” | 4.83” | 15,000 lbs. |
| XCL625 | 5/8” | 0.78” | 1.44” | 4.06” | 5.71” | 22,600 lbs. |
| XCL750 | 3/4” | 0.97” | 1.79” | 4.74” | 6.89” | 35,300 lbs. |
