• Approved for overhead lifting
• Forged alloy steel
• Quenched & tempered
• Powder coated HI-VIZ safety orange
• All load pins are 100% individually inspected
• 100% proof tested at 2 times the working load limit
• 100% mag-particle crack detection
• Double retaining pin designed for reduced pin wear
Specifications

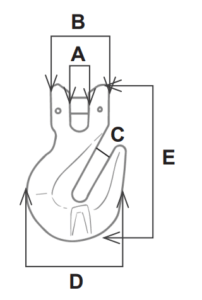

| STOCK NUMBER | SIZE | DIMENSIONS | Working load limit | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| XCG281 | 9/32″ | 0.31” | 1.30” | 0.35” | 1.77” | 3.03” | 4,300 lbs. |
| XCG312 | 5/16” | 0.37” | 1.42” | 0.43” | 2.09” | 3.70” | 5,700 lbs. |
| XCG375 | 3/8″ | 0.47” | 1.87” | 0.53” | 2.89” | 5.03” | 8,800 lbs. |
| XCG500 | 1/2” | 0.59” | 2.32” | 0.65” | 3.78” | 6.44” | 15,000 lbs. |
| XCG625 | 5/8″ | 0.72” | 2.76” | 0.76” | 4.43” | 7.22” | 22,600 lbs. |
